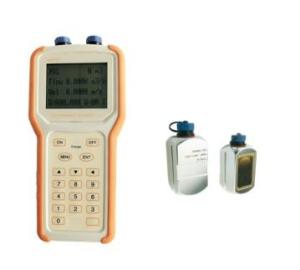

OCT ±1.0%R RS485 Handheld Non Contact Water Flow Meter

Name: OCT 10R RS485 Handheld Non Contact Water Flow Meter
Brand: Lanry
Price: 1 USD

Brand Name : Lanry

Model Number : TF1100-CH

Certification : CE

Place of Origin : Shanghai, China (Mainland)

MOQ : 1 Unit

Price : Negotiable

Packaging Details : Carton package

Communication : 4~20mA, OCT

Enclosure type : Handheld

Sensitivity : 0.003m/s

Accuracy : ±1.0%R

medium : liquid

Response time : 0.5s

Product name : Handheld Ultrasonic Flow Meter

Pipe size : DN20-6000

Contact Now

±1.0%R Handheld Battery Power Portable Ultrasonic Liquid Flow Meter

Hand-held ultrasonic flowmeters enable non-contact measurement of liquid flow. The flow is measured by mounting the sensor on the outer wall of the pipe. It has the characteristics of small size, convenient carrying and accurate measurement. It can do production monitoring, flow verification, and is a necessary tool for real-time flow inspection. Widely used in tap water, heating, water conservancy, metallurgy, chemical, energy and other industries.

±1.0%R Handheld Battery Power Portable Ultrasonic Liquid Flow Meter Features:

1.14 hours battery (rechargeable), back-lit 4 lines display.
2. Works reliably in both clean and somewhat dirty liquids with turbidity<10000ppm.
3.Non-invasive transducers.
4.Data logger function.
5.Can be used for mobile measurement, flow rate calibration, data comparing, meters running status checking.

Specifications: Transmitter

Measurement principle	Ultrasonic transit-time difference correlation principle
Flow velocity range	0.01 to 12 m/s, bi-directional
Accuracy	±1.0% of reading at rates >0.3 m/s);±0.003 m/s of reading at rates<0.3 m/s
Response time	0.5s
Resolution	0.25mm/s
Sensitivity	0.003m/s
Repeatability	0.2% of reading
Damping of displayed value	0-99s(selectable by user)
Liquid Types Supported	both clean and somewhat dirty liquids with turbidity <10000 ppm
Power Supply	AC: 85-265V Up to 14 h with fully charged internal batteries
Degree of protection	IP65 according to EN60529
Enclosure type	Handheld, Portable
Housing material	ABS( UL 94HB)
Operating temperature	-20℃ to +60℃
Display	4 line×16 English letters LCD graphic display, backlit
Units	User Configured (English and Metric)
Rate	Rate and Velocity Display

Specifications: Transducer

Degree of protection	IP65 according to EN60529.(IP67 or IP68 Upon request)
Pipe diameter range	20-50mm for type S, 40-1000mm for type M, 1000-6000mm for type L
Suited Liquid Temperature	Std. Temp.: -35℃~85℃ for short periods up to 120℃
Suited Liquid Temperature	High Temp.: -35℃~200℃ for short periods up to 250℃
Transducer Size	Type S 48(h)28(w)28(d)mm
	Type M 60(h)34(w)33(d)mm
	Type L 80(h)40(w)42(d)mm
Material of transducer	Aluminum for standard temp. sensor, and peek for high temp. sensor
Cable Length	Std: 5m

Data sheet download TF1100-CH transit-time handheld ultrasonic flowmet...
Manual Download TF1100-CH transit-time handheld flowmeter Manual.p...

Dimensional Sketches

Transmitter:
OCT ±1.0%R RS485 Handheld Non Contact Water Flow Meter
Transducer:

Packing & Delivery

With years of export experience along with excellent quality, advanced services and competitive prices, Lanry has won numerous customers' trust and support. With years of export experience along with excellent quality, advanced services and competitive prices, Lanry has won numerous customers' trust and support.

OCT ±1.0%R RS485 Handheld Non Contact Water Flow Meter

Delivery

Clamp On Handheld Ultrasonic Flow Meter TF1100-CH for water and chilled water application
Standard meter: 3-7 days
Special meter: pls contact us
Express, by air, by sea can be optional.
