1mm Resolution Non Intrusive Ultrasonic Liquid Flow Meter

Product Categories
Lanry Instruments (Shanghai) Co., Ltd.
Contact Now

1mm Resolution Non Intrusive Ultrasonic Liquid Flow Meter

Brand Name : Lanry

Model Number : UOL

Place of Origin : Shanghai, China (Mainland)

MOQ : 1 Unit/Units

Price : US $400-1,150 / Units

Supply Ability : 1000 Unit/Units per Week Parshall flume flowmeter is for OEM

Sensor material : ABS&PVC/PTFE

Weirnotch type : Open Channel

Crust Material : ABS

Display Resolution : 1 mm

Accuracy : 0.2%

Product name : Open Channel Flowmeter

Type : Wall-mounted

Application : Weir Tank

Contact Now

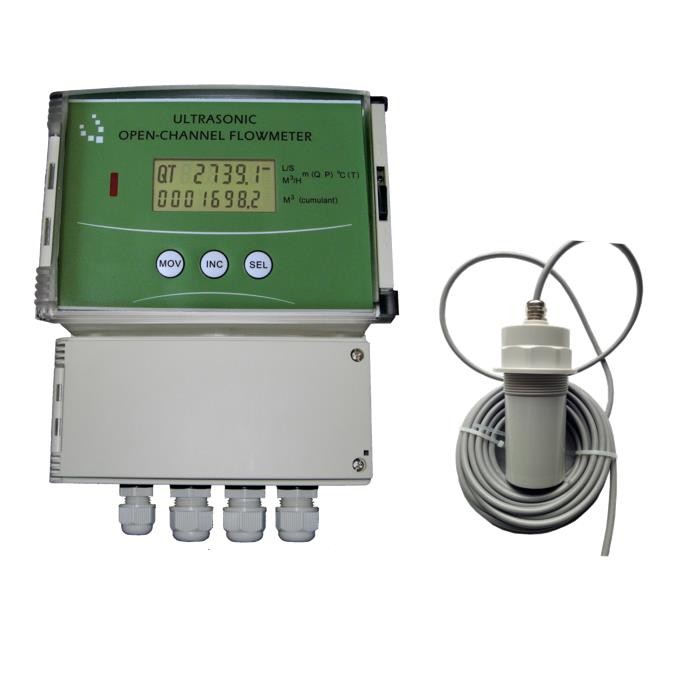

Wall-mounted Ultrasonic Weir Tank Open Channel Flowmeter

1mm Resolution Non Intrusive Ultrasonic Liquid Flow Meter

Wall-mounted Ultrasonic Weir Tank Open Channel Flowmeter Specification

Weir&Flume Match Chinese Standard Parshall Flume, Triangular Weir, Rectangular Weir, Non-throat Flume
ISO Standard Parshall Flume
USBR Standard Long-throat Flume(Rectangular flume, Trapezoid Flume)
Probe 4m(otherwise other range and anti-corrosion requirements, indicate when you order it)
Accuracy 0.2% Full span (In air)
Display Resolution 1mm
Mode of Indication 14 Digit LCD in 2 rows
Output Current DC4~20mA/RS485/Hart Serial communication RS485(modbus standard protocol)
Output Load 0~500Ω
Output Resolution 0.03% Full span
Relays 2,4,5,6(5A 250VAC/30VDC)
Baud rate 19200/9600/4800
Parameter set up 3 induction buttons
Temperature Range -40 ºC ~75 ºC (LCD:-20 ºC ~+70ºC)
Temperature compensation The whole range is automatic
Pressure Range 0.1MP (press definitely)
Power Supply DC24V(±5%) 0.2A AC220V(±20%) 0.1A
Cable 6-12mm
Single Wire Diameter 0.5-1.78mm
Cable Fix PG13.5/M20
Measure Cycle 1.5second
Crust Material ABS
Sensor Material ABS/PVC/PTFE
Protect Grade IP67

Company Profile


Lanry Instruments is the professional manufacturer of flow measurement instruments, provides one package service of research and development, production, marketing and after -sales services. Engaged in the production of flow meters more than 20 years, Lanry has been equipped with advanced design capabilities and piled up a wealth of field application experience, which lays a solid foundation for the commitment to the promotion and innovation of high-tech system solution. The corporation has devoted to the production of flow measurement instruments with superior performance, high stability and strong reliability. Currently, Lanry Instruments has developed into two branches as Lanry Instruments(Shanghai) Co.,Ltd. and Lanry Instruments (Dalian) Co., Ltd, which are responsible for different areas and applications.
